DESCRIPTION

Basic Info.

Filter Bag Filter	The Filter Type
Type	Filter Cylinder
Usage	Liquid Filter, Air Filter
Filtration Grade	Medium Filter
Filter Bag Sectional Shape	Round Bag
Filter Bag Environment	High-Temperature
Cartridge Installation	Specific Angle Ramp Loading
Feature	Big Pressure Resistant, Long Service Life
Special Specification	Customized
Application 2	Oil Field, Fuel Refueling, etc.
Application 1	Petroleum Chemical, Pharmaceutical and Food
Technic	Woven Mesh
Transport Package	Poly-Wood Case
Specification	as per your request
Trademark	MAISHI
Origin	Hebei China
HS Code	73141400
Production Capacity	1000 Pieces Per Day

Product Description

Woven Mesh Stainless Steel Filter Cylinder

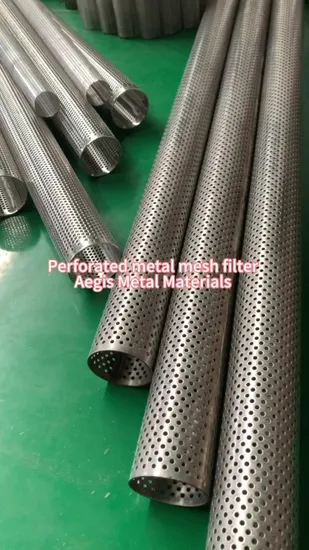

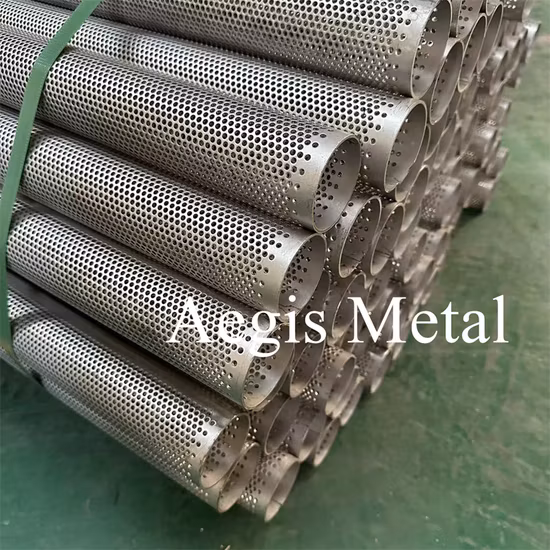

Material: stainless steel woven mesh, sintered mesh, perforated metal.
Mesh count: 2-635
Filter rating: 70%-90%
Layer: single layer or multi-layer metal mesh.
Sample: 6"*14" is available, special sizes can be customized.

Features of filter cylinder
With high concentricity ratebig pressure resistantstainless steel material, no burrLong service life

Applications of Mesh Filter Cylinderused in petroleum chemical industryused in oil field pipeline filterused in fuel refueling equipment filterused in water treatment equipment filterused in pharmaceutical and food processing field etc

Mesh weaving type

1. [ Plain Weave ]: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves.In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern.Each weft thread crosses the warp threads by going over one, then under the next, and so on.The next weft thread goes under the warp threads that its neighbor went over, and vice versa.2. [ Twill Weave ]: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left,forming a distinct diagonal line. This diagonal line is also known as a wale.A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.3. [ Plain Dutch Weave ]: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.4. [Twill Dutch Weave ]: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.5. [ Reversed Dutch Weave ]: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

Available mesh specification for cylindrical mesh filters
Plain Weave Stainless Steel Woven Wire Mesh

Mesh/inch	Wire diameter(mm)	Aperture(mm)	--	Mesh/inch	Wire diameter(mm)	Aperture(mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		500mesh	0.025	0.0385
Technical Note:1.Standard roll length:15.24m, 30m, 30.5m, 61m2.Standard roll width:0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25')3.Special sizes available at request4.Packing:In waterproof paper, PVC bag, wooden case.Custom packing available at request.

Plain Dutch Weave Mesh

Mesh per Inch (Warp x Weft)	Wire Diameter (Warp x Weft)
12meshx64mesh	0.58mm X 0.40mm
14meshx88mesh	0.50mmx0.33mm
24meshx110mesh	0.355mm X 0.25mm
30mesh X 150mesh	0.23mm X 0.18mm
40mesh X 200mesh	0.18mm X 0.14mm
50mesh X 250mesh	0.14mm X 0.11mm
60mesh X 300mesh	0.14mm X 0.09mm
70mesh X 400mesh	0.12mm X 0.08mm

stainless steel cylindrical filter cylinders
1> Plain weave, small diameter cylinder
2> Plain weave, edge sealed cylinder
3> Plain weave, one end closed cylinder
4> dutch weave cylinder

5> Other size and shaped cylinders
Special-shaped filter cartridges, conical filter tube, basket filter cartridges, multi-layer mesh filter cartridges , bakset type, bucket type or container type

We can also customize as per your request. Please kindly send your picture or drawing for our reference.
Application

stainless steel mesh filter cylinder is widely used in laboratory, chemical fiber, petroleum, chemical industry, pharmacy, foodstuff, water treatment electric, power, pharmaceutics, machinery, metallurgy, ceramics, dispose of sewage, foodstuff and beverage, cosmetic etc.

Any need, welcome to contact us.
